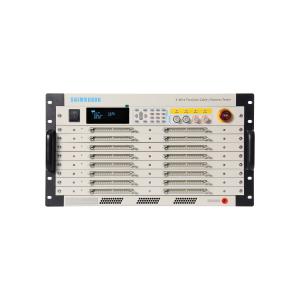

FPC Flexible Circuit Board High Voltage Wire Harness Tester With 4 Wire Resistance Resolution

Name: FPC Flexible Circuit Board High Voltage Wire Harness Tester With 4 Wire Resistance Resolution
Brand: SAIMR
Price: 1500 USD

Brand Name : SAIMR

Model Number : SAIMR7000

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : 1500-3500$ per set

Payment Terms : T/T

Supply Ability : 200set/year

Delivery Time : 30 work days

Product Name : Medium and High Voltage Wire/Cable Harness Tester

Dimensions : 535*482*355mm

Test Current : AC/DC

Weight : 30kg

Contact Now

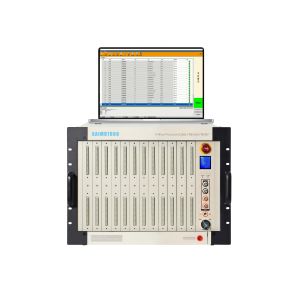

SAIMR7000 FPC Flexible Circuit Board High Voltage Harness Tester with 4-wire Resistance Resolution

Applicable Typical Industry

Application

FPC Flexible Circuit Board High Voltage Wire Harness Tester With 4 Wire Resistance Resolution

Features

Insulation resistance test up to 50 GΩ with 4-wire resistance resolution up to 1 μΩ
The distributed structure (16 points/board), test points can be expanded to more than 20,000 points.
The system adopts two-wire and four-wire mixed measurement, which has higher measurement accuracy and faster speed.
Software custom editing test function, editable point import and export.
One-stop comprehensive testing (OS, DC resistance, insulation resistance, AC/DC insulation withstand voltage, LCR, etc.).

Software Introduction

FPC Flexible Circuit Board High Voltage Wire Harness Tester With 4 Wire Resistance Resolution

Feature Items	Detailed Description
1.Project Management Function	Load existing projects, add test projects, and set test parameters.
2. Network Segment Management	The order can be adjusted arbitrarily, the point can be selected arbitrarily, flexible testing, and self -defined naming is convenient for management
3. System Function Modules
3.1 System Self-test	Check whether the system is functioning properly.
3.2 Find a Point	Use the patrol point pen to find the point, display the point information, and broadcast the voice.
3.3 Multimeter Function	Quickly perform various tests, easy debugging.
3.4 Self-learning Function	Quickly detect the connection of unknown harnesses and select Generate Test Filegroup.
4. Data Preservation
4.1 Data Report Export	The data report format can be customized and supports CSV XLSX PDF and WORD format export.
4.2 Database Saving	Each test is completed, the data is saved to the database.
4.3 Database Query	Users can query historical data in the database and print data reports.
5. Barcode Printing Function	Support code scanning guns, you can customize barcodes according to the product and print.
6. User Management	Three levels of management: administrator, programmer, operator.

Specification

Medium Voltage test	SAIMR7000
Test Mode	Four- wire or 2-wire (mixed test)
Number of Points	16/32/48/64…20480 points
Test Project	Test Range	Test Accuracy
OS Test (Voltage 5V)	2 kΩ-1100 kΩ (optional 20 kΩ -1000 kΩ)	±5%
Insulation Resistance Test	1MΩ-10GΩ (30V-2000V)	1MΩ~100MΩ: ±2%
		100MΩ~ 1GΩ: ±5%
		1GΩ~ 10GΩ: ±10%
DC Resistance Test	0.1Ω-1MΩ	<100k: ±1%
DC Resistance Test	0.1Ω-1MΩ	>100k: ±5%
Outer Four-wire DC Resistance Test	10μΩ~100Ω	±0.2%+5μΩ
Four-wire NTC Test (10k, 100k)	Temperature Judgment (accuracy 0.1°C)	Users can self-defined RT table for resistance and temperature judgment
	Resistance Judgment (accuracy 10k: 1% 100k: 5%)	The resistance value can be judged according to the real -time temperature of the environment
	Comparison Judgment (accuracy 0.1°C)	Maximum resistance difference between tested and standard parts (Range)
AC Hi-pot Test	30V-3000V	±3%
DC Hi-pot Test	30V-4000V	±3%
AC Leakage Current Test	1μA-10mA	±3%
DC Leakage Current Test	0.1μA-5mA	±3%
Diodes / Zener Diodes	0-10V	0.1 mA / 1 mA (test signal)
Dimensions (in mm)	535482355(192P)	535482355(192P)
Maximum Weight (in kg)	30	30
Standard Configuration	User’s manual in U disk, power cord, network cable, port adapter board, test line, patrol pen.
Optional Configuration	Insulation standard resistance, conduction standard resistance, industrial computer, desktop computer, monitor, mouse, keyboard, speaker.
